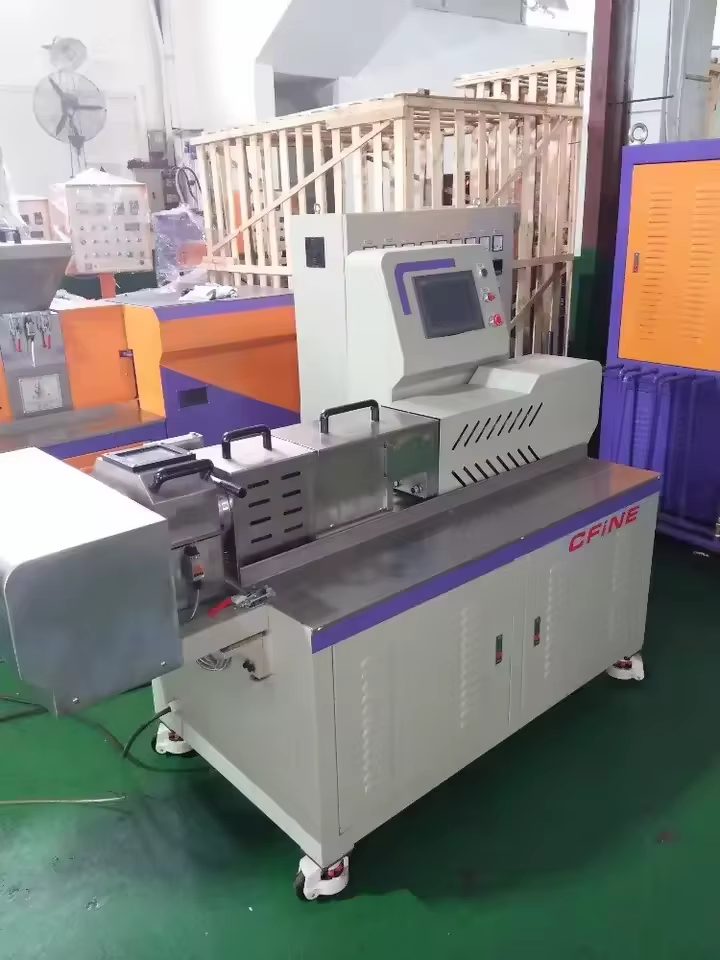

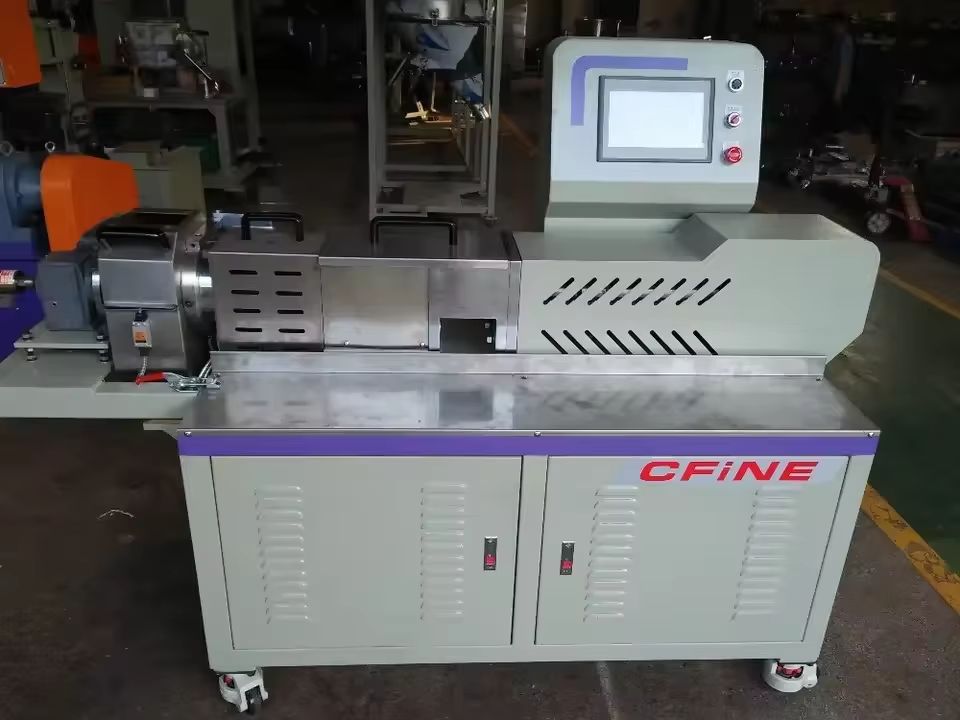

CFine Factory Custom CF-170 Ceramic Extrusion Pelletizer
Product brief introduction
The granulator is used to granulate ceramic powder injection molding materials. This equipment is used in conjunction with a 5L internal mixer to complete the granulation process after the powder material is mixed. The PLC accurately controls the temperature and movement of the running program.
Technical Data
| CF-75 | CF-90 | CF-170 | |
| Storage Tank Volume | 1L | 1L | 5L |
| Each Batch of Material Input | 1-3KG | 2-5KG | 10-15KG |
| Injection Cylinder | Φ75MM | Φ90MM | Φ170MM |
| Oil Hydraulic Cylinder | Φ40×265mm | Φ100×550mm | Φ150×600mm |
| MAX Pressure | 9Mpa | 14Mpa | 14Mpa |
| MAX Shear Rate | 200r/min | 200r/min | 50r/min |
| Size | L1200*W600*H1350MM | L2030*W830*H1450MM | L2300*W900*H1450MM |
| Weight | About 85KG | About 1200KG | About 1500KG |
After-sales Service
During normal use, non-consumable parts are guaranteed for one year. We provide on-site installation guidance and long-term technical support.
Note: Electrical components and motors are imported from Taiwan and foreign brands.
