Custom High Quality Safe Lab Open Mixer Mill For Engineering Plastics
Product brief introduction

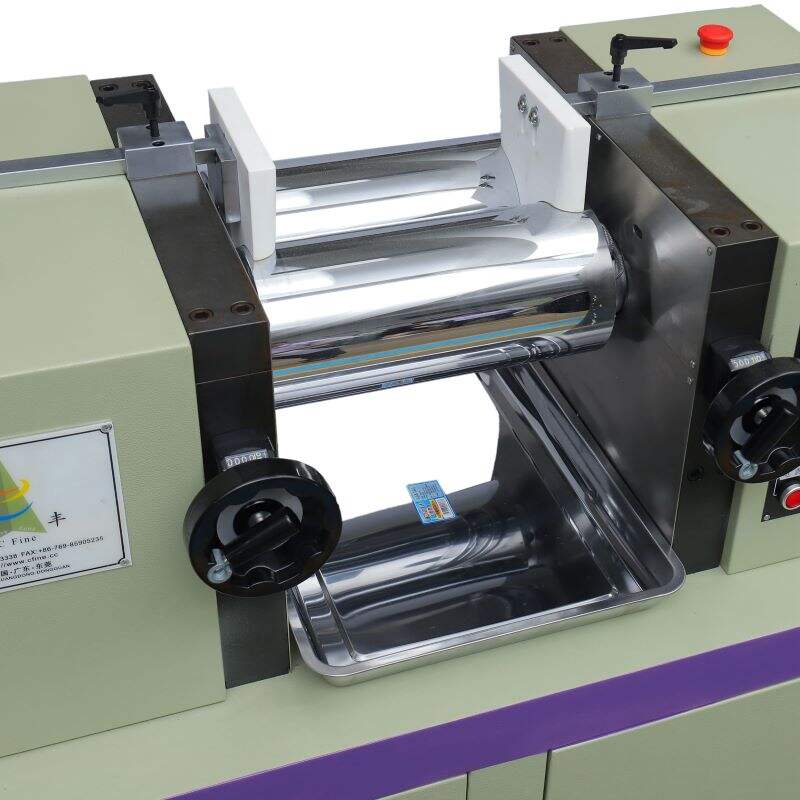

This experimental type open mixer mill is suitable for the mixing and dispersing of engineering plastic,pigment masterbatch,silicone rubber and other polymers;The double rollers are mirror-chromed with eletric heating and water cooling,the surface temperature of the roller is uniform.The space between the two rollers is adjustable;Multi-directional Safety protection device make it safe and reliable,durable.
Mixing Mill Technical Data
| CF-120 | CF-160 | CF-200 | CF-230 | Remarks | |
| Diameter of Barrel(mm) | 120 | 160 | 200 | 230 | Length of barrel can be customized according to customer requirements |
| Length of Barrel(mm) | 350 | 350 | 520 | 620 | |
| Batch Feeding | 500g~800g | 800g~1500g | 1500g~2600g | 3000g~5000g | |
| Electrical Heating(kw) | 0.75 | 1.5 | 3.75 | 3.75 | |
| Water Cooling(kw) | 3.75 | 5.5 | 7.5 | 11 | |
| Weight(KG) | 400 | 600 | 850 | 1100 |
Product Superiority
1.Two rollers made of mirror high carbon steel,hardness is HRC55-62

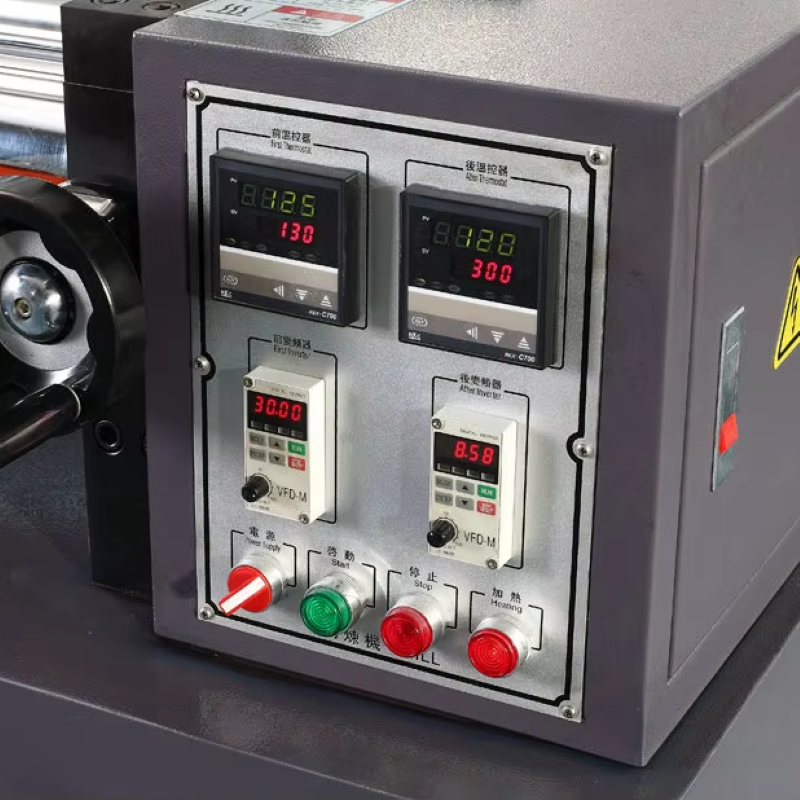

2.Taiwan Fotek temperature controller with stable quality
3.Customized good quality heating tube with long lifetime
4.Roller gap prevent material enter heating tube
