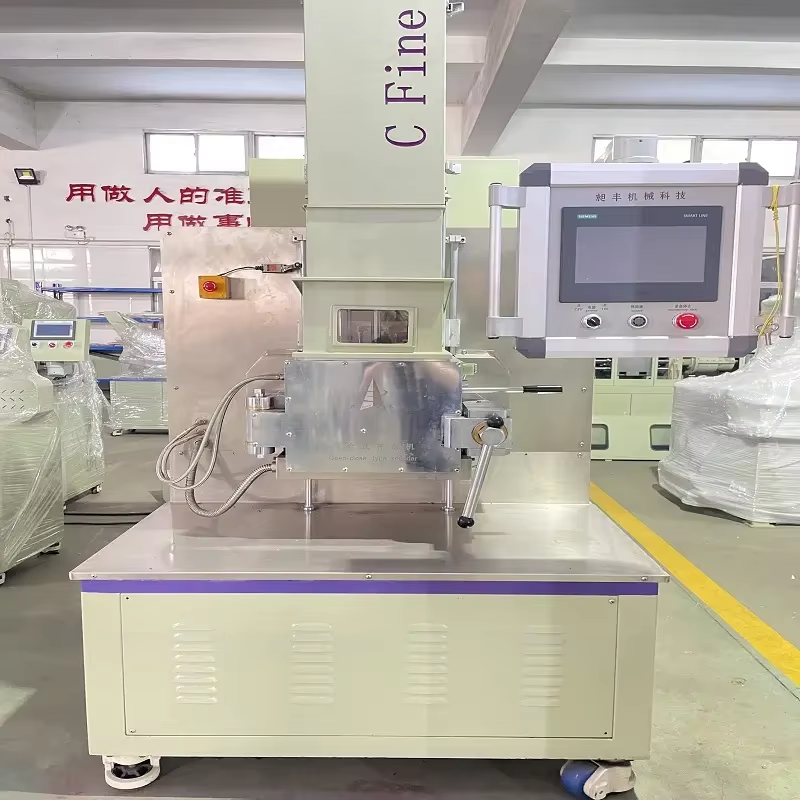

Internal Mixer Machine with Advanced Rotor Design for Uniform Mixing

How Advanced Rotor Design Enables Uniform Mixing in Internal Mixers

Geometric Optimization of Rotor Profiles for Controlled Shear Distribution

Internal mixers today create consistent blends thanks to carefully designed rotor shapes. When it comes to rotor wings, their form and positioning really matter for how shear is distributed throughout the mix. Engineers use computational fluid dynamics (CFD) software to fine tune these wing curves so they create just the right amount of shear near the chamber walls while getting rid of those annoying dead spots where materials don't mix properly. Many modern mixers feature progressive profiles with gradually changing gaps between parts. These help spread materials around evenly without causing unwanted heat buildup during processing. Take helical flight designs for instance. Those with pitch angles ranging from 12 to 18 degrees work well because they move materials along while still breaking them down effectively. All these improvements mean batch-to-batch variation stays within about 5%, which meets important testing requirements for specialty elastomers. After all, nobody wants structural problems caused by fillers that didn't distribute properly in the final product.

Fixed vs. Variable-Pitch Rotors: Impact on Dispersion Uniformity in High-Performance Compounding

Standard fixed pitch rotors create predictable shear patterns that work well for making products that need to be exactly the same every time. But things get interesting with variable pitch rotors. These have helix angles that change along their length, starting around 20 degrees near where material enters and gradually decreasing to about 8 degrees at the output end. What happens is pretty neat actually. Materials first experience strong shearing forces when they enter, which breaks them down effectively. Then as they move through the system, the mixing becomes much gentler, distributing components evenly throughout. Industry tests show that when working with silica reinforced materials, this two stage process cuts down on inconsistencies by roughly 30 percent compared to traditional methods. Plus there's another benefit nobody talks about much but manufacturers love it: these variable pitch designs help maintain fiber structure in advanced composites while ensuring proper bonding occurs across all points in thermoset materials during curing.

Measuring and Validating Uniform Mixing Performance in Internal Mixers

Quantifying Mixing Uniformity via Image Analysis and Statistical Variance Metrics

During compounding processes, real time image analysis with high res cameras and special software helps track where fillers and additives end up. Looking at pixel intensity variations gives us a good idea about how evenly everything is mixed together. Standard deviation values below 0.05 and coefficients of variation under 5% tell us when things are working well. If the CV goes over 7%, that usually means something's wrong with how materials are dispersing, so operators need to tweak rotor speeds or mix longer. There are several main methods here: analyzing grayscale histograms shows pigment spread, counting particles based on thresholds works too, and spatial clustering finds those pesky clumps we all hate. These automated checks cut down on human mistakes by around two thirds compared to old school manual sampling according to research from Powder Technology back in 2008.

Correlating Dispersion Quality with End-Product Properties (Tensile Strength, Cure Consistency)

When rubber gets mixed properly, it just performs better after curing. Getting those fillers dispersed evenly throughout the material makes all the difference, really cutting down on stress points that can weaken the product. We've seen tensile strength jump anywhere from 15 to 30 percent in our best applications when this happens right. The cross-linking process matters too. When we maintain consistent density across batches, the cure times become much tighter, usually within about a second either way. This kind of consistency means less waste overall and gives us much better control over production parameters. To make sure everything stays reliable between batches, most manufacturers run accelerated aging tests along with dynamic mechanical analysis, checking for any drift in performance characteristics over time.

Modern Internal Mixer Evolution: From Banbury Heritage to Digitally Tunable High-Shear Systems

Back in the day, internal mixers were those old-school Banbury machines with their fixed rotors and all that brute force shearing action. But things have changed quite a bit since then. Modern systems come equipped with real time sensors and smart controls powered by artificial intelligence. These advanced setups can tweak rotor speeds, adjust blade angles, and even modify chamber pressures while the mixing cycle is still running. What does this mean for manufacturers? Better control over how materials flow and stay at optimal temperatures during mixing. The payoff? Materials turn out much more uniform across batches, and companies save between 18 to 22 percent on energy costs compared to older equipment according to research from the Polymer Processing Institute back in 2023. With computer fluid dynamics guiding rotor movement patterns, today's mixers produce remarkably consistent results even when dealing with tricky stuff like silica reinforced rubbers or complicated polymer blends. This advancement has really shaken up what we consider possible in terms of both efficiency and product quality standards within the rubber and plastic industries.

Validating Rotor Performance with DEM Simulation in Internal Mixer Development

Using Discrete Element Modeling to Map Flow Patterns and Residence Time Distribution

Discrete Element Modeling, or DEM for short, checks how well rotors work by looking at what happens to individual grains of material during processing. This method shows where materials actually flow, spots areas where stuff just sits around doing nothing, and measures something called residence time distribution (RTD), which basically tells us if everything gets mixed evenly. When engineers tweak rotor shapes using these insights, they can cut down on RTD variations by about 60% compared to older designs. That translates to much better consistency in the final product, typically within plus or minus 3%. DEM also finds those pesky dead spots where particles escape proper mixing altogether. Finding these problem areas early lets designers fix issues before building expensive prototypes. Companies report cutting their development time by roughly 40% this way, while also saving energy because particles follow more predictable paths through the system.

FAQ

Q: What role does rotor design play in internal mixers?

A: Rotor design is crucial for ensuring uniform mixing in internal mixers. Carefully shaped rotor wings help distribute shear properly throughout the mix, optimizing the blending process and minimizing unwanted heat buildup.

Q: How does variable pitch rotor design improve mixing?

A: Variable pitch rotors have helix angles that vary along their length, providing strong shearing forces initially that become gentler as materials move through. This helps in reducing inconsistencies and maintaining fiber structure during high-performance compounding.

Q: What is the significance of using image analysis in measuring mixing uniformity?

A: Image analysis allows for real-time tracking of fillers and additives, helps in assessing pixel intensity variations, and ensures that components are evenly mixed, ultimately reducing human mistakes by two-thirds.
